产品展示

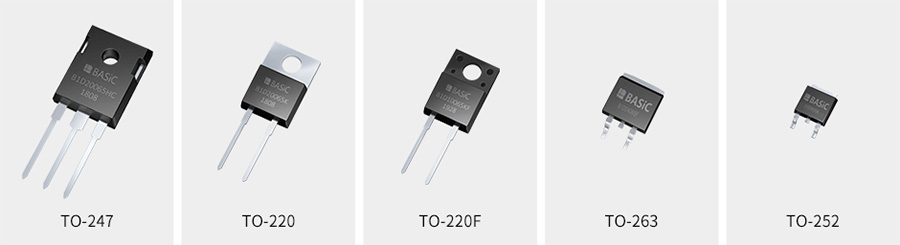

碳化硅作为一种宽禁带半导体材料，与传统的硅基器件相比，具有更优越的性能。碳化硅的宽禁带(3.26eV)、高临界场(3×106V/cm)和高导热系数(4.9W/cm·K)使得功率半导体器件效率更高，运行速度更快，并且在设备的成本、体积、重量等方面都得到了降低。基本半导体碳化硅肖特基二极管，提供行业标准封装，具有优越的性能和极高的工作效率。

Product	DataSheet	VRRM	IF	IFSM	VF	Ptot	QC	Package Name
Product	DataSheet	（V）	(A)	(A)	(V)	(W)	(nC)	Package Name
B1D02065E		650	2	16	1.4	39	6.8	TO-252-2
B1D02065K		650	2	16	1.4	43	6.8	TO-220-2
B1D04065E		650	4	30	1.4	60	12	TO-252-2
B2D04065D		650	4	32	1.4	61	12	DFN 5*6
B1D04065K		650	4	30	1.4	72	12	TO-220-2
B1D04065KF		650	4	30	1.4	30	12	TO-220F-2
B2D04065V		650	4	32	1.35	25	12	SMBF
B2D04065K1		650	4	34	1.33	91	14	TO-220-2
B1D06065E		650	6	45	1.43	75	17	TO-252-2
B2D06065E		650	6	48	1.33	107	17	TO-252-2
B1D06065F		650	6	45	1.43	89	17	TO-263-2
B1D06065K		650	6	45	1.43	98	17	TO-220-2
B1D06065KF		650	6	45	1.43	53	17	TO-220F-2
B2D06065K		650	6	48	1.33	119	17	TO-220-2
B1D06065KS	‍	650	6	45	1.44	70	17	TO-220-isolated
B2D06065Q		650	6	45	1.33	98	17	DFN8*8
B1D08065E		650	8	60	1.43	109	24	TO-252-2
B1D08065F		650	8	60	1.44	112	24	TO-263-2
B1D08065K		650	8	60	1.44	129	24	TO-220-2
B2D08065K		650	8	60	1.36	131	24	TO-220-2
B1D08065KF		650	8	64	1.4	48	24	TO-220F-2
B1D08065KS		650	8	64	1.46	74	24	TO-220-isolated
B2D08065KS		650	8	64	1.28	86	24	TO-220-isolated
B1D10065E		650	10	75	1.43	117	29	TO-252-2
B1D10065F		650	10	75	1.45	134	29	TO-263-2
B2D10065F		650	10	75	1.29	125	29	TO-263-2
B1D10065H		650	10	75	1.43	158	29	TO-247-2
B2D10065K		650	10	85	1.29	163	29	TO-220-2
B2D10065K1		650	10	85	1.31	144	29	TO-220-2
B1D10065KF		650	10	75	1.43	34	29	TO-220F-2
B1D10065KS		650	10	75	1.43	89	29	TO-220-isolated
B2D10065Q		650	10	70	1.33	126	29	DFN8*8
B2D10065KS		650	10	85	1.36	109	29	TO-220-isolated
B1D12065K		650	12	90	1.42	170	38	TO-220-2
B1D15065K		650	15	112	1.42	194	46	TO-220-2
B2D15065K		650	15	120	1.29	211	46	TO-220-2
B1D16065HC		650	8/16*	60*	1.44	168*	24	TO-247-3
B2D20065H		650	20	160	1.28	252	64	TO-247-2
B2D20065HC1		650	10/20*	70*	1.34	172*	31	TO-247-3
B2D20065F		650	20	155	1.3	177	65	TO-263-3
B2D20065K		650	20	155	1.29	245	64	TO-220-2
B2D20065TF		650	20	70	1.3	77	60	TO-3PF
B1D30065HC		650	30	100*	1.41	227*	46	TO-247-3
B1D30065TF		650	30	110*	1.37	72*	50	TO-3PF
B1D40065H		650	40	310	1.42	416	130	TO-247-2
B2D40065HC		650	20/40*	160*	1.28	252*	64	TO-247-3
B2D02120E1		1200	2	22	1.35	77	13	TO-252-2
B2D02120K1		1200	2	20	1.35	80	13	TO-220-2
B1D03120E		1200	3	30	1.37	92	19	TO-252-2
B1D05120E		1200	5	60	1.4	124	32	TO-252-2
B2D05120K1		1200	5	55	1.3	147	32	TO-220-2
B1D10120E		1200	10	75	1.48	143	52	TO-252-2
B2D10120H1		1200	10	90	1.36	143	51	TO-247-2
B2D10120HC1		1200	5/10*	55*	1.3	147*	31	TO-247-3
B2D10120K1		1200	10	90	1.37	185	51	TO-220-2
B2D15120H1		1200	15	135	1.34	283	84	TO-247-2
B2D16120HC1		1200	8/16*	80*	1.34	170*	48	TO-247-3
B2D20120H1		1200	20	190	1.35	366	120	TO-247-2
B2D20120F1		1200	20	180	1.3	283	122	TO-263-2
B2D20120HC1		1200	10/20*	90*	1.4	140*	55	TO-247-3
B2D30120HC1		1200	15/30*	135*	1.35	220*	89	TO-247-3
B2D40120HC1		1200	20/40*	180*	1.36	259*	120	TO-247-3
